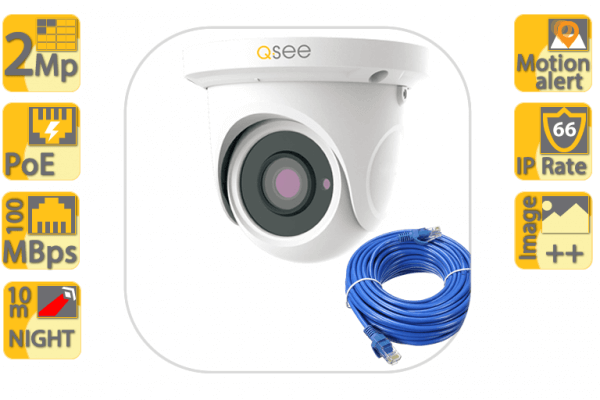

Q-See QTN8016D IP Dome Camera : 1/2.8″ 2MP CMOS sensor : 1920×1080 : 3.6mm Lens : 10-20M IR Night Vision : H.264 : IP66

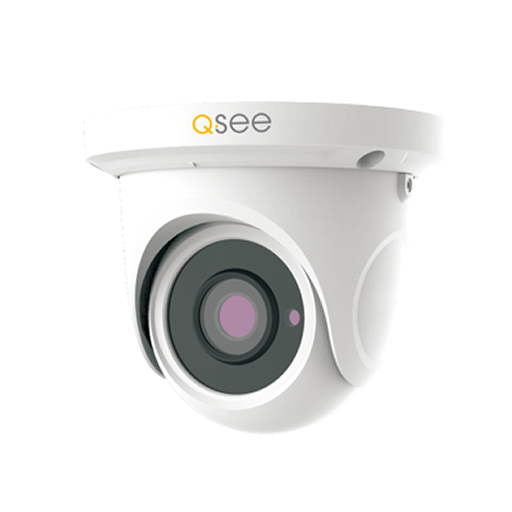

The Q-See 2MP QTN8016D IP Dome camera is a low impact high definition fixed lens camera which can be mounted at any angle but is typically installed under eaves or inside on a ceiling. In short range setups this sleek little camera is ideal for home, commercial and small business deployments where basic HD resolution is all that is required.
In the era of 4MP, 5MP, 8MP and soon 12MP the question must be asked – why still use a 2MP IP camera? Other than the clear financial fact (2MP is cheaper) the answer is also practical. 2MP HD cameras are ideal still for covering close in smaller areas like offices, entryways and narrow byways where the scene is near by to the camera and digital zoom would not likely be required. They are perfect for front door close in coverage where the field of view is recording images only a few meters from the camera or side gates.
The Q-See QTN8016D may be aggressively priced but its still has many advanced features include ICR Auto Switch, True Day / Night,3D DNR,Digital WDR and ROI coding with support for P2P, direct DC12V Power Supply or PoE and a built-in Web Server. It will connect to any Q-See NVR, CMS or VMS. Call us – we can explain!
Advanced mobile apps
Digital Wide Dynamic Range
Get a clear view in less than ideal conditions
Match the Q-See QTN8015B and QTN8016D with the next generation Network Video Recorders form Q-See like the QT874, QT878 and QT816 for quick and easy plug and play setup. Power is supplied via the Power Over Ethernet ports on the rear of those NVRs. A separate DC12V connector is also available if you would like to supply direct local power to the camera.
Specifications
Model |
QTN8016D |
| Image Sensor | 1 / 2.8″ CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.01 lux @F1.2 / AGC ON; 0 lux with IR |
| Lens | 3.6mm @F1.6 / horizontal field of view: 79° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | No ( See QTN8086B if required) |
| HLC | No ( See QTN8086B if required) |
| Defogging | No ( See QTN8086B if required) |
| Digital NR | 3D DNR |
| Angle Adjustment | Any angle |
Image |
|
| Video Compression | H.264 BP / MP / HP, MJPEG |
| Resolution | 1080P 2MP ( 1920×1080 ) / 720P 1.3MP ( 1280×720 ) / D1 & CIF (480×240) |
| Main Stream 60Hz | 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps ) |
| Main Stream 50Hz | 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit Rate | 256 Kbps ~ 5 Mbps |
| Bit Rate | Type VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | 3 ROI / Saturation / Brightness / Chroma / Contrast / Wide Dynamic / Sharpen / NR /etc. Adjustable through client software or web browser |
| Audio Compression | No |
| ROI | Yes |
Interfaces |
|
| Network | RJ45 10M / 100M self-adaption |
| Audio | No |
| Video | No separate CVBS output |
Functions |
|
| Remote Monitoring | IE browsing /CMS remote control |
| IE browsing / CMS remote control | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocols | TCP / IP / UDP / DHCP / NTP / R Network Protocol TSP / PPPoE / DDNS / SMTP / FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage to other QT-View NVRs/VSSs |
| Smart Alarm | Motion alarm |
| Smart Analysis | No |
| PoE | Yes |
| IR Distance | 10 ~ 20 m |
| Ingress Protection | IP66 |
Others |
|
| Power Supply | DC12V / PoE |
| Power Consumption | < 2W |
| IR Consumption ON | < 4.5W |
| Operating Environment | – 20°C ~ 50°C / <90 % relative humidity non-condensing |
| Dimensions | (mm) 87×108 |
| Weight (net) | 369g |
| Installation | Ceiling/Pendent mounting for any angle. |
